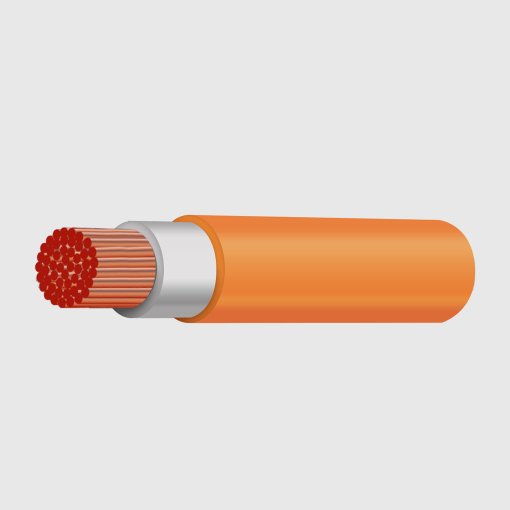

70mm² Flexible Welding/Battery Cable Double Insulated
70mm² Flexible Welding/Battery Cable Double Insulated
Couldn't load pickup availability
🚛 Free Shipping Over $450*
🚛 Free Shipping Over $450*
- Free Shipping on orders over $450 *Excludes Bulky Items, Flat Packs and dangerous goods.
- We aim to dispatch your order within 24 hours
- Standard delivery within 3-6 days. Add 2-3 days for rural areas
- We automatically pick the most appropriate courier based on your total order
- Express Post Available
Unwind Guarantee
Unwind Guarantee
- We guarantee products that are fit for purpose
- Lifetime access to our customer support
- Receive advice on installation and product tips anytime
- Minimum 1 year warranty on all products (Refer product description for each item warranty)
- Change of mind returns within 30 days (Unused and unopened products)* Terms and Conditions apply
70mm² flexible power/welding single core cable for fixed power applications:
- Power: Switchboards, busbars, transformers
- Welding: Earth and electrode leads
- Automotive: Jumper Leads, Battery chargers
Pack Qty: By the metre
Nominal Area: 70mm²
Nominal O.D: 17.00mm
AMP Rating* two single cores: 240
Voltage Drop mV/Am at Max operating Temperature–Single Phase: 0.62
Voltage Drop mV/Am at Max operating Temperature–Three Phase: 0.59
Conductor: Flexible Class 6 Bunched OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Conductor Qty & Diameter: 2240/0.2mm
Insulation (White): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808
Insulation Thickness:1.4mm
Sheath (Orange): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808
Sheath Thickness:1.5mm
Electrical Resistance at 20°C: 0.272 ohm/km
Mass: 72.34kg/100mmm
Maximum operating temperature: 75°C in normal Use OR 105°C where not subject to, or protected from, mechanical damage (refer AS/NZS 3008.1.1:2009)
*AMP Ratings are to AS/NZS 3008. Unenclosed-Spaced at 40°C (in air), 25°C (in ground). Refer AS/NZS 3008 for derating factors – For Welding AMP Ratings refer to AS/NZS 1995.
